Our certified refurbished products from 6KU are a great value. These items may have been used in photoshoot or floor model items, and may have some cosmetic product or packaging defects. However, all items are fully functioning with a full product warranty. Save big on these items! Returns not accepted.
Please note this complete bikes has the following defects or missing parts.

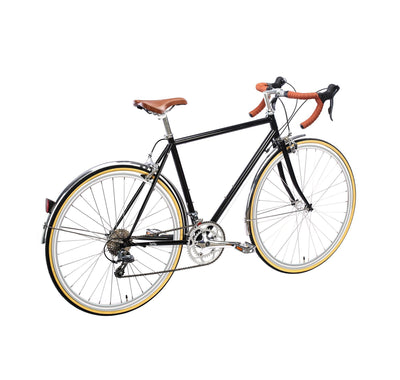

Designed to be the luxury car of the commuter bike world, our lightweight Chromoly Steel Frame coupled with relaxed geometry design will turn your commuting grind into a smooth cruise. The 16S City turns every hill and valley into a flat road with its Shimano 16-Speed drivetrain, and did we mention the mirrored chrome fender finish? This beauty will be sure to turn heads, rain sleet or snow.
| FRAME 4130 double butted chromoly steel |
FORK 4130 double-butted chromoly with lugged crown |
HEADSET VP 1" threaded forged alloy |
STEM 80mm alloy quill stem w/ 25.4 clamp diameter |
| HANDLEBARS 40cm Alloy dropbars |
HANDLEBAR TAPE Brown EVA tape |
SEAT POST 25.4mm alloy |
SADDLE Velo urban saddle |
| PEDALS alloy platform |
BOTTOM BRACKET Sealed cartridge 68mm x 103mm English threaded |
CRANKSET 170mm compact gearing (50/34T) |
CHAIN KMC Z72 |
| FRONT/REAR DERAILLEUR Shimano Claris |
CASSETTE Shimano HG200-8 (11-32T) |
RIMS 700c Double wall alloy |
HUBS Novatec alloy 32H low flange |
| TIRES 700 x 25c Tanwall |
TUBES Kenda 700 x 25c Presta Valve |
SPOKES 14G Stainless steel w/ brass nipples |
BRAKES Forged alloy caliper brakes |
| SHIFTERS Shimano Claris STI-2400(2x8) |
FENDERS Stainless Steel |
WEIGHT 49cm: 24lbs, 54cm: 26lbs, 58cm: 28lbs |
| FRAME 4130 double butted chromoly steel |
FORK 4130 double butted chromoly with lugged crown |
| HEADSET VP 1" threaded forged alloy |
STEM 80mm alloy quill stem w/ 25.4 clamp diameter |
| HANDLEBARS 40cm Alloy dropbars |
HANDLEBAR TAPE Brown EVA tape |
| SEAT POST 25.4mm alloy |
SADDLE Velo urban saddle |
| PEDALS alloy platform |
BOTTOM BRACKET Sealed cartridge 68mm x 103mm English threaded |
| CRANKSET 170mm compact gearing (50/34T) |
CHAIN KMC Z72 |
| FRONT/REAR DERAILLEUR Shimano Claris |
CASSETTE Shimano HG200-8 (11-32T) |
| RIMS 700c Double wall alloy |
HUBS Novatec alloy 32H low flange |
| TIRES 700 x 25c Tanwall |
TUBES Kenda 700 x 25c Presta Valve |
| SPOKES 14G Stainless steel w/ brass nipples |
BRAKES Forged alloy caliper brakes |
| SHIFTERS Shimano Claris STI-2400(2x8) |
FENDERS Stainless Steel |
| WEIGHT 49cm: 24lbs, 54cm: 26lbs, 58cm: 28lbs |
|
FRAME SIZE HEIGHT |
SMALL 5'4" - 5'6" |
MEDIUM 5'7" - 5'9" |
LARGE 5'10" - 6'1" |
| A | Head Tube Angle | 71° | 73° | 73.5° |
| B | Seat Tube Angle | 74° | 74° | 74° |
| C | Top Tube | 523mm | 549mm | 572.5mm |
| D | Seat Tube C-T | 490mm | 540mm | 580mm |
| E | Head Tube | 100mm | 120mm | 160mm |
| F | B.B. Drop | 70mm | 70mm | 70mm |
| G | Chain Stay | 435mm | 435mm | 435mm |
| H | Fork Rake | 50mm | 50mm | 50mm |
| I | Wheelbase | 1025mm | 1030mm | 1050mm |
| J | Reach | 387mm | 402mm | 412mm |
| K | Stack | 524mm | 551mm | 591mm |
| L | Stand Over | 735mm | 778mm | 818mm |
| FRAME 4130 double butted chromoly steel | FORK 4130 double butted chromoly with lugged crown |
| HEADSET VP 1" threaded forged alloy | STEM 80mm alloy quill stem w/ 25.4 clamp diameter |
| HANDLEBARS 40cm Alloy dropbars | HANDLEBAR TAPE Brown EVA tape |
| SEAT POST 25.4mm alloy | SADDLE Velo urban saddle |
| PEDALS alloy platform | BOTTOM BRACKET Sealed cartridge 68mm x 103mm English threaded |
| CRANKSET 170mm compact gearing (50/34T) | CHAIN KMC Z72 |
| FRONT/REAR DERAILLEUR Shimano Claris | CASSETTE Shimano HG200-8 (11-32T) |
| RIMS 700c Double wall alloy | HUBS Novatec alloy 32H low flange |
| TIRES 700 x 25c Tanwall | TUBES Kenda 700 x 25c Presta Valve |
| SPOKES 14G Stainless steel w/ brass nipples | BRAKES Forged alloy caliper brakes |
| SHIFTERS Shimano Claris STI-2400(2x8) |
FENDERS Stainless Steel |
| WEIGHT 49cm: 24lbs, 54cm: 26lbs, 58cm: 28lbs |
|
FRAME SIZE HEIGHT |
SMALL 5'4" - 5'6" | |
|
MEDIUM 5'7" - 5'9" |
LARGE 5'10" - 6'1" | |
| A | Head Tube Angle | 71° | 73° |
 $10 Value |
| FRAME 4130 double butted chromoly steel |
FORK 4130 double-butted chromoly with lugged crown |
HEADSET VP 1" threaded forged alloy |
STEM 80mm alloy quill stem w/ 25.4 clamp diameter |
| HANDLEBARS 40cm Alloy dropbars |
HANDLEBAR TAPE Brown EVA tape |
SEAT POST 25.4mm alloy |
SADDLE Velo urban saddle |
| PEDALS alloy platform |
BOTTOM BRACKET Sealed cartridge 68mm x 103mm English threaded |
CRANKSET 170mm compact gearing (50/34T) |
CHAIN KMC Z72 |
| FRONT/REAR DERAILLEUR Shimano Claris |
CASSETTE Shimano HG200-8 (11-32T) |
RIMS 700c Double wall alloy |
HUBS Novatec alloy 32H low flange |
| TIRES 700 x 25c Tanwall |
TUBES Kenda 700 x 25c Presta Valve |
SPOKES 14G Stainless steel w/ brass nipples |
BRAKES Forged alloy caliper brakes |
| SHIFTERS Shimano Claris STI-2400(2x8) |
FENDERS Stainless Steel |
WEIGHT 49cm: 24lbs, 54cm: 26lbs, 58cm: 28lbs |
| FRAME 4130 double butted chromoly steel |
FORK 4130 double butted chromoly with lugged crown |
| HEADSET VP 1" threaded forged alloy |
STEM 80mm alloy quill stem w/ 25.4 clamp diameter |
| HANDLEBARS 40cm Alloy dropbars |
HANDLEBAR TAPE Brown EVA tape |
| SEAT POST 25.4mm alloy |
SADDLE Velo urban saddle |
| PEDALS alloy platform |
BOTTOM BRACKET Sealed cartridge 68mm x 103mm English threaded |
| CRANKSET 170mm compact gearing (50/34T) |
CHAIN KMC Z72 |
| FRONT/REAR DERAILLEUR Shimano Claris |
CASSETTE Shimano HG200-8 (11-32T) |
| RIMS 700c Double wall alloy |
HUBS Novatec alloy 32H low flange |
| TIRES 700 x 25c Tanwall |
TUBES Kenda 700 x 25c Presta Valve |
| SPOKES 14G Stainless steel w/ brass nipples |
BRAKES Forged alloy caliper brakes |
| SHIFTERS Shimano Claris STI-2400(2x8) |
FENDERS Stainless Steel |
| WEIGHT 49cm: 24lbs, 54cm: 26lbs, 58cm: 28lbs |
|
FRAME SIZE HEIGHT |
SMALL 5'4" - 5'6" |
MEDIUM 5'7" - 5'9" |
LARGE 5'10" - 6'1" |
| A | Head Tube Angle | 71° | 73° | 73.5° |
| B | Seat Tube Angle | 74° | 74° | 74° |
| C | Top Tube | 523mm | 549mm | 572.5mm |
| D | Seat Tube C-T | 490mm | 540mm | 580mm |
| E | Head Tube | 100mm | 120mm | 160mm |
| F | B.B. Drop | 70mm | 70mm | 70mm |
| G | Chain Stay | 435mm | 435mm | 435mm |
| H | Fork Rake | 50mm | 50mm | 50mm |
| I | Wheelbase | 1025mm | 1030mm | 1050mm |
| J | Reach | 387mm | 402mm | 412mm |
| K | Stack | 524mm | 551mm | 591mm |
| L | Stand Over | 735mm | 778mm | 818mm |
Our certified refurbished products from 6KU are a great value. These items may have been used in photoshoot or floor model items, and may have some cosmetic product or packaging defects. However, all items are fully functioning with a full product warranty. Save big on these items! Returns not accepted.
Please note this complete bikes has the following defects or missing parts.
Designed to be the luxury car of the commuter bike world, our lightweight Chromoly Steel Frame coupled with relaxed geometry design will turn your commuting grind into a smooth cruise. The 16S City turns every hill and valley into a flat road with its Shimano 16-Speed drivetrain, and did we mention the mirrored chrome fender finish? This beauty will be sure to turn heads, rain sleet or snow.
| FRAME 4130 double butted chromoly steel |
FORK 4130 double-butted chromoly with lugged crown |
HEADSET VP 1" threaded forged alloy |
STEM 80mm alloy quill stem w/ 25.4 clamp diameter |
| HANDLEBARS 40cm Alloy dropbars |
HANDLEBAR TAPE Brown EVA tape |
SEAT POST 25.4mm alloy |
SADDLE Velo urban saddle |
| PEDALS alloy platform |
BOTTOM BRACKET Sealed cartridge 68mm x 103mm English threaded |
CRANKSET 170mm compact gearing (50/34T) |
CHAIN KMC Z72 |
| FRONT/REAR DERAILLEUR Shimano Claris |
CASSETTE Shimano HG200-8 (11-32T) |
RIMS 700c Double wall alloy |
HUBS Novatec alloy 32H low flange |
| TIRES 700 x 25c Tanwall |
TUBES Kenda 700 x 25c Presta Valve |
SPOKES 14G Stainless steel w/ brass nipples |
BRAKES Forged alloy caliper brakes |
| SHIFTERS Shimano Claris STI-2400(2x8) |
FENDERS Stainless Steel |
WEIGHT 49cm: 24lbs, 54cm: 26lbs, 58cm: 28lbs |
| FRAME 4130 double butted chromoly steel |
FORK 4130 double butted chromoly with lugged crown |
| HEADSET VP 1" threaded forged alloy |
STEM 80mm alloy quill stem w/ 25.4 clamp diameter |
| HANDLEBARS 40cm Alloy dropbars |
HANDLEBAR TAPE Brown EVA tape |
| SEAT POST 25.4mm alloy |
SADDLE Velo urban saddle |
| PEDALS alloy platform |
BOTTOM BRACKET Sealed cartridge 68mm x 103mm English threaded |
| CRANKSET 170mm compact gearing (50/34T) |
CHAIN KMC Z72 |
| FRONT/REAR DERAILLEUR Shimano Claris |
CASSETTE Shimano HG200-8 (11-32T) |
| RIMS 700c Double wall alloy |
HUBS Novatec alloy 32H low flange |
| TIRES 700 x 25c Tanwall |
TUBES Kenda 700 x 25c Presta Valve |
| SPOKES 14G Stainless steel w/ brass nipples |
BRAKES Forged alloy caliper brakes |
| SHIFTERS Shimano Claris STI-2400(2x8) |
FENDERS Stainless Steel |
| WEIGHT 49cm: 24lbs, 54cm: 26lbs, 58cm: 28lbs |
|
FRAME SIZE HEIGHT |
SMALL 5'4" - 5'6" |
MEDIUM 5'7" - 5'9" |
LARGE 5'10" - 6'1" |
| A | Head Tube Angle | 71° | 73° | 73.5° |
| B | Seat Tube Angle | 74° | 74° | 74° |
| C | Top Tube | 523mm | 549mm | 572.5mm |
| D | Seat Tube C-T | 490mm | 540mm | 580mm |
| E | Head Tube | 100mm | 120mm | 160mm |
| F | B.B. Drop | 70mm | 70mm | 70mm |
| G | Chain Stay | 435mm | 435mm | 435mm |
| H | Fork Rake | 50mm | 50mm | 50mm |
| I | Wheelbase | 1025mm | 1030mm | 1050mm |
| J | Reach | 387mm | 402mm | 412mm |
| K | Stack | 524mm | 551mm | 591mm |
| L | Stand Over | 735mm | 778mm | 818mm |
Our certified refurbished products from 6KU are a great value. These items may have been used in photoshoot or floor model items, and may have some cosmetic product or packaging defects. However, all items are fully functioning with a full product warranty. Save big on these items! Returns not accepted.
Please note this complete bikes has the following defects or missing parts.
Designed to be the luxury car of the commuter bike world, our lightweight Chromoly Steel Frame coupled with relaxed geometry design will turn your commuting grind into a smooth cruise. The 16S City turns every hill and valley into a flat road with its Shimano 16-Speed drivetrain, and did we mention the mirrored chrome fender finish? This beauty will be sure to turn heads, rain sleet or snow.
| FRAME 4130 double butted chromoly steel |
FORK 4130 double-butted chromoly with lugged crown |
HEADSET VP 1" threaded forged alloy |
STEM 80mm alloy quill stem w/ 25.4 clamp diameter |
| HANDLEBARS 40cm Alloy dropbars |
HANDLEBAR TAPE Brown EVA tape |
SEAT POST 25.4mm alloy |
SADDLE Velo urban saddle |
| PEDALS alloy platform |
BOTTOM BRACKET Sealed cartridge 68mm x 103mm English threaded |
CRANKSET 170mm compact gearing (50/34T) |
CHAIN KMC Z72 |
| FRONT/REAR DERAILLEUR Shimano Claris |
CASSETTE Shimano HG200-8 (11-32T) |
RIMS 700c Double wall alloy |
HUBS Novatec alloy 32H low flange |
| TIRES 700 x 25c Tanwall |
TUBES Kenda 700 x 25c Presta Valve |
SPOKES 14G Stainless steel w/ brass nipples |
BRAKES Forged alloy caliper brakes |
| SHIFTERS Shimano Claris STI-2400(2x8) |
FENDERS Stainless Steel |
WEIGHT 49cm: 24lbs, 54cm: 26lbs, 58cm: 28lbs |
| FRAME 4130 double butted chromoly steel |
FORK 4130 double butted chromoly with lugged crown |
| HEADSET VP 1" threaded forged alloy |
STEM 80mm alloy quill stem w/ 25.4 clamp diameter |
| HANDLEBARS 40cm Alloy dropbars |
HANDLEBAR TAPE Brown EVA tape |
| SEAT POST 25.4mm alloy |
SADDLE Velo urban saddle |
| PEDALS alloy platform |
BOTTOM BRACKET Sealed cartridge 68mm x 103mm English threaded |
| CRANKSET 170mm compact gearing (50/34T) |
CHAIN KMC Z72 |
| FRONT/REAR DERAILLEUR Shimano Claris |
CASSETTE Shimano HG200-8 (11-32T) |
| RIMS 700c Double wall alloy |
HUBS Novatec alloy 32H low flange |
| TIRES 700 x 25c Tanwall |
TUBES Kenda 700 x 25c Presta Valve |
| SPOKES 14G Stainless steel w/ brass nipples |
BRAKES Forged alloy caliper brakes |
| SHIFTERS Shimano Claris STI-2400(2x8) |
FENDERS Stainless Steel |
| WEIGHT 49cm: 24lbs, 54cm: 26lbs, 58cm: 28lbs |
|
FRAME SIZE HEIGHT |
SMALL 5'4" - 5'6" |
MEDIUM 5'7" - 5'9" |
LARGE 5'10" - 6'1" |
| A | Head Tube Angle | 71° | 73° | 73.5° |
| B | Seat Tube Angle | 74° | 74° | 74° |
| C | Top Tube | 523mm | 549mm | 572.5mm |
| D | Seat Tube C-T | 490mm | 540mm | 580mm |
| E | Head Tube | 100mm | 120mm | 160mm |
| F | B.B. Drop | 70mm | 70mm | 70mm |
| G | Chain Stay | 435mm | 435mm | 435mm |
| H | Fork Rake | 50mm | 50mm | 50mm |
| I | Wheelbase | 1025mm | 1030mm | 1050mm |
| J | Reach | 387mm | 402mm | 412mm |
| K | Stack | 524mm | 551mm | 591mm |
| L | Stand Over | 735mm | 778mm | 818mm |
| $10 Value |
| FRAME 4130 double butted chromoly steel |
FORK 4130 double-butted chromoly with lugged crown |
HEADSET VP 1" threaded forged alloy |
STEM 80mm alloy quill stem w/ 25.4 clamp diameter |
| HANDLEBARS 40cm Alloy dropbars |
HANDLEBAR TAPE Brown EVA tape |
SEAT POST 25.4mm alloy |
SADDLE Velo urban saddle |
| PEDALS alloy platform |
BOTTOM BRACKET Sealed cartridge 68mm x 103mm English threaded |
CRANKSET 170mm compact gearing (50/34T) |
CHAIN KMC Z72 |
| FRONT/REAR DERAILLEUR Shimano Claris |
CASSETTE Shimano HG200-8 (11-32T) |
RIMS 700c Double wall alloy |
HUBS Novatec alloy 32H low flange |
| TIRES 700 x 25c Tanwall |
TUBES Kenda 700 x 25c Presta Valve |
SPOKES 14G Stainless steel w/ brass nipples |
BRAKES Forged alloy caliper brakes |
| SHIFTERS Shimano Claris STI-2400(2x8) |
FENDERS Stainless Steel |
WEIGHT 49cm: 24lbs, 54cm: 26lbs, 58cm: 28lbs |
| FRAME 4130 double butted chromoly steel |
FORK 4130 double butted chromoly with lugged crown |
| HEADSET VP 1" threaded forged alloy |
STEM 80mm alloy quill stem w/ 25.4 clamp diameter |
| HANDLEBARS 40cm Alloy dropbars |
HANDLEBAR TAPE Brown EVA tape |
| SEAT POST 25.4mm alloy |
SADDLE Velo urban saddle |
| PEDALS alloy platform |
BOTTOM BRACKET Sealed cartridge 68mm x 103mm English threaded |
| CRANKSET 170mm compact gearing (50/34T) |
CHAIN KMC Z72 |
| FRONT/REAR DERAILLEUR Shimano Claris |
CASSETTE Shimano HG200-8 (11-32T) |
| RIMS 700c Double wall alloy |
HUBS Novatec alloy 32H low flange |
| TIRES 700 x 25c Tanwall |
TUBES Kenda 700 x 25c Presta Valve |
| SPOKES 14G Stainless steel w/ brass nipples |
BRAKES Forged alloy caliper brakes |
| SHIFTERS Shimano Claris STI-2400(2x8) |
FENDERS Stainless Steel |
| WEIGHT 49cm: 24lbs, 54cm: 26lbs, 58cm: 28lbs |
|
FRAME SIZE HEIGHT |
SMALL 5'4" - 5'6" |
MEDIUM 5'7" - 5'9" |
LARGE 5'10" - 6'1" |
| A | Head Tube Angle | 71° | 73° | 73.5° |
| B | Seat Tube Angle | 74° | 74° | 74° |
| C | Top Tube | 523mm | 549mm | 572.5mm |
| D | Seat Tube C-T | 490mm | 540mm | 580mm |
| E | Head Tube | 100mm | 120mm | 160mm |
| F | B.B. Drop | 70mm | 70mm | 70mm |
| G | Chain Stay | 435mm | 435mm | 435mm |
| H | Fork Rake | 50mm | 50mm | 50mm |
| I | Wheelbase | 1025mm | 1030mm | 1050mm |
| J | Reach | 387mm | 402mm | 412mm |
| K | Stack | 524mm | 551mm | 591mm |
| L | Stand Over | 735mm | 778mm | 818mm |
| FRAME 4130 double butted chromoly steel | FORK 4130 double butted chromoly with lugged crown |
| HEADSET VP 1" threaded forged alloy | STEM 80mm alloy quill stem w/ 25.4 clamp diameter |
| HANDLEBARS 40cm Alloy dropbars | HANDLEBAR TAPE Brown EVA tape |
| SEAT POST 25.4mm alloy | SADDLE Velo urban saddle |
| PEDALS alloy platform | BOTTOM BRACKET Sealed cartridge 68mm x 103mm English threaded |
| CRANKSET 170mm compact gearing (50/34T) | CHAIN KMC Z72 |
| FRONT/REAR DERAILLEUR Shimano Claris | CASSETTE Shimano HG200-8 (11-32T) |
| RIMS 700c Double wall alloy | HUBS Novatec alloy 32H low flange |
| TIRES 700 x 25c Tanwall | TUBES Kenda 700 x 25c Presta Valve |
| SPOKES 14G Stainless steel w/ brass nipples | BRAKES Forged alloy caliper brakes |
| SHIFTERS Shimano Claris STI-2400(2x8) |
FENDERS Stainless Steel |
| WEIGHT 49cm: 24lbs, 54cm: 26lbs, 58cm: 28lbs |
|
FRAME SIZE HEIGHT |
SMALL 5'4" - 5'6" |
|
MEDIUM 5'7" - 5'9" |
LARGE 5'10" - 6'1" |
Our certified refurbished products from 6KU are a great value. These items may have been used in photoshoot or floor model items, and may have some cosmetic product or packaging defects. However, all items are fully functioning with a full product warranty. Save big on these items! Returns not accepted.
Please note this complete bikes has the following defects or missing parts.

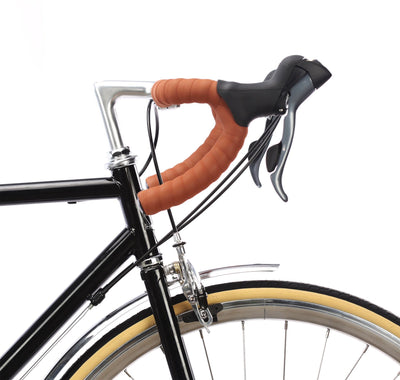

Designed to be the luxury car of the commuter bike world, our lightweight Chromoly Steel Frame coupled with relaxed geometry design will turn your commuting grind into a smooth cruise. The 16S City turns every hill and valley into a flat road with its Shimano 16-Speed drivetrain, and did we mention the mirrored chrome fender finish? This beauty will be sure to turn heads, rain sleet or snow.
| FRAME 4130 double butted chromoly steel |
FORK 4130 double-butted chromoly with lugged crown |
HEADSET VP 1" threaded forged alloy |
STEM 80mm alloy quill stem w/ 25.4 clamp diameter |
| HANDLEBARS 40cm Alloy dropbars |
HANDLEBAR TAPE Brown EVA tape |
SEAT POST 25.4mm alloy |
SADDLE Velo urban saddle |
| PEDALS alloy platform |
BOTTOM BRACKET Sealed cartridge 68mm x 103mm English threaded |
CRANKSET 170mm compact gearing (50/34T) |
CHAIN KMC Z72 |
| FRONT/REAR DERAILLEUR Shimano Claris |
CASSETTE Shimano HG200-8 (11-32T) |
RIMS 700c Double wall alloy |
HUBS Novatec alloy 32H low flange |
| TIRES 700 x 25c Tanwall |
TUBES Kenda 700 x 25c Presta Valve |
SPOKES 14G Stainless steel w/ brass nipples |
BRAKES Forged alloy caliper brakes |
| SHIFTERS Shimano Claris STI-2400(2x8) |
FENDERS Stainless Steel |
WEIGHT 49cm: 24lbs, 54cm: 26lbs, 58cm: 28lbs |
| FRAME 4130 double butted chromoly steel |
FORK 4130 double butted chromoly with lugged crown |
| HEADSET VP 1" threaded forged alloy |
STEM 80mm alloy quill stem w/ 25.4 clamp diameter |
| HANDLEBARS 40cm Alloy dropbars |
HANDLEBAR TAPE Brown EVA tape |
| SEAT POST 25.4mm alloy |
SADDLE Velo urban saddle |
| PEDALS alloy platform |
BOTTOM BRACKET Sealed cartridge 68mm x 103mm English threaded |
| CRANKSET 170mm compact gearing (50/34T) |
CHAIN KMC Z72 |
| FRONT/REAR DERAILLEUR Shimano Claris |
CASSETTE Shimano HG200-8 (11-32T) |
| RIMS 700c Double wall alloy |
HUBS Novatec alloy 32H low flange |
| TIRES 700 x 25c Tanwall |
TUBES Kenda 700 x 25c Presta Valve |
| SPOKES 14G Stainless steel w/ brass nipples |
BRAKES Forged alloy caliper brakes |
| SHIFTERS Shimano Claris STI-2400(2x8) |
FENDERS Stainless Steel |
| WEIGHT 49cm: 24lbs, 54cm: 26lbs, 58cm: 28lbs |
|
FRAME SIZE HEIGHT |
SMALL 5'4" - 5'6" |
MEDIUM 5'7" - 5'9" |
LARGE 5'10" - 6'1" |
| A | Head Tube Angle | 71° | 73° | 73.5° |
| B | Seat Tube Angle | 74° | 74° | 74° |
| C | Top Tube | 523mm | 549mm | 572.5mm |
| D | Seat Tube C-T | 490mm | 540mm | 580mm |
| E | Head Tube | 100mm | 120mm | 160mm |
| F | B.B. Drop | 70mm | 70mm | 70mm |
| G | Chain Stay | 435mm | 435mm | 435mm |
| H | Fork Rake | 50mm | 50mm | 50mm |
| I | Wheelbase | 1025mm | 1030mm | 1050mm |
| J | Reach | 387mm | 402mm | 412mm |
| K | Stack | 524mm | 551mm | 591mm |
| L | Stand Over | 735mm | 778mm | 818mm |
$15 Value
